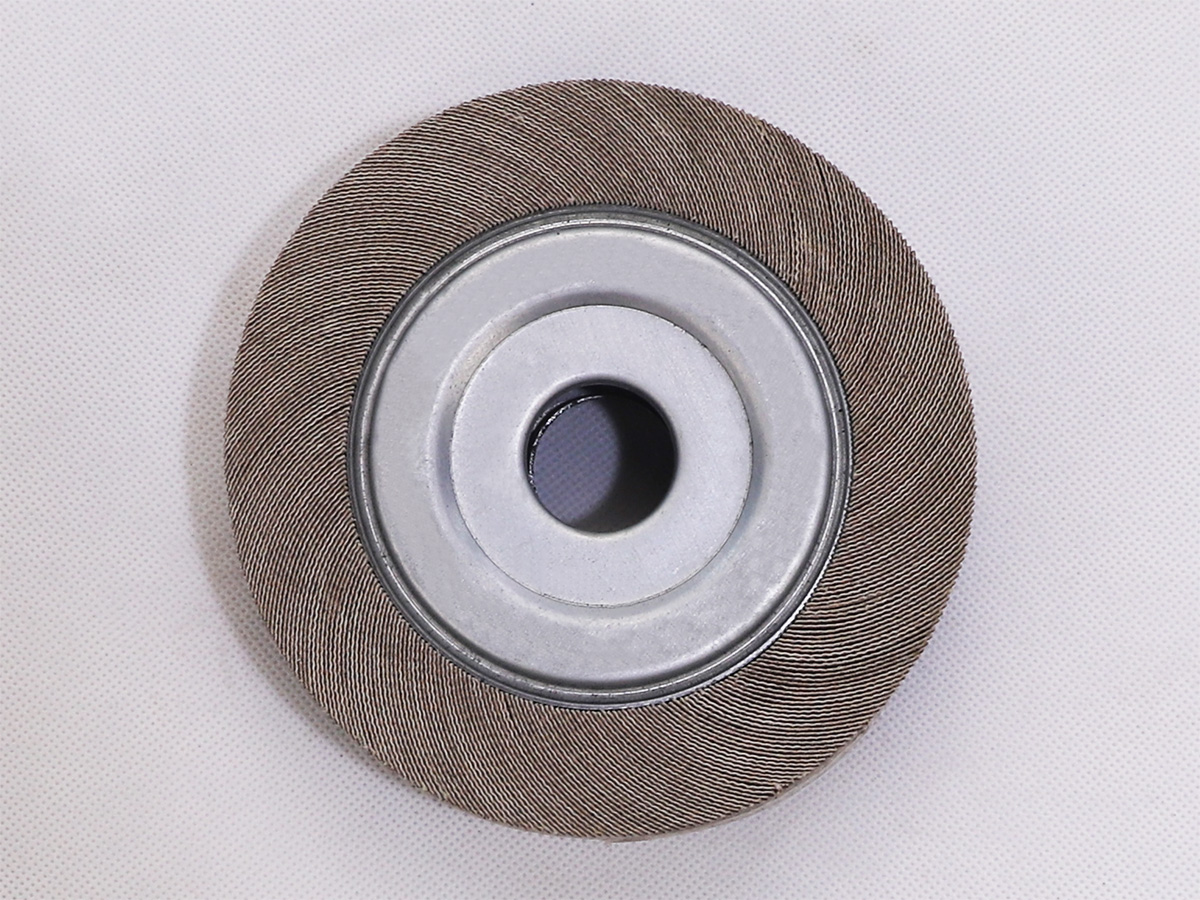

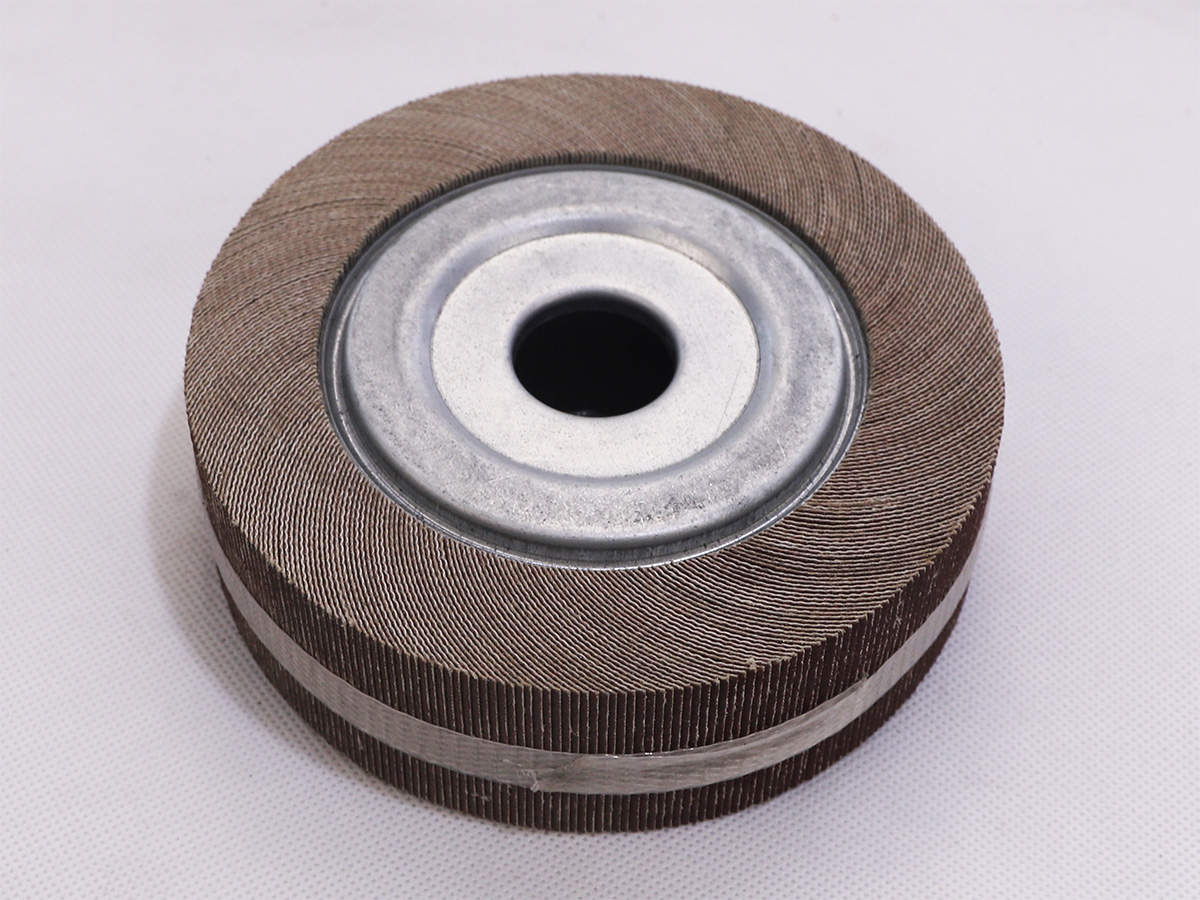

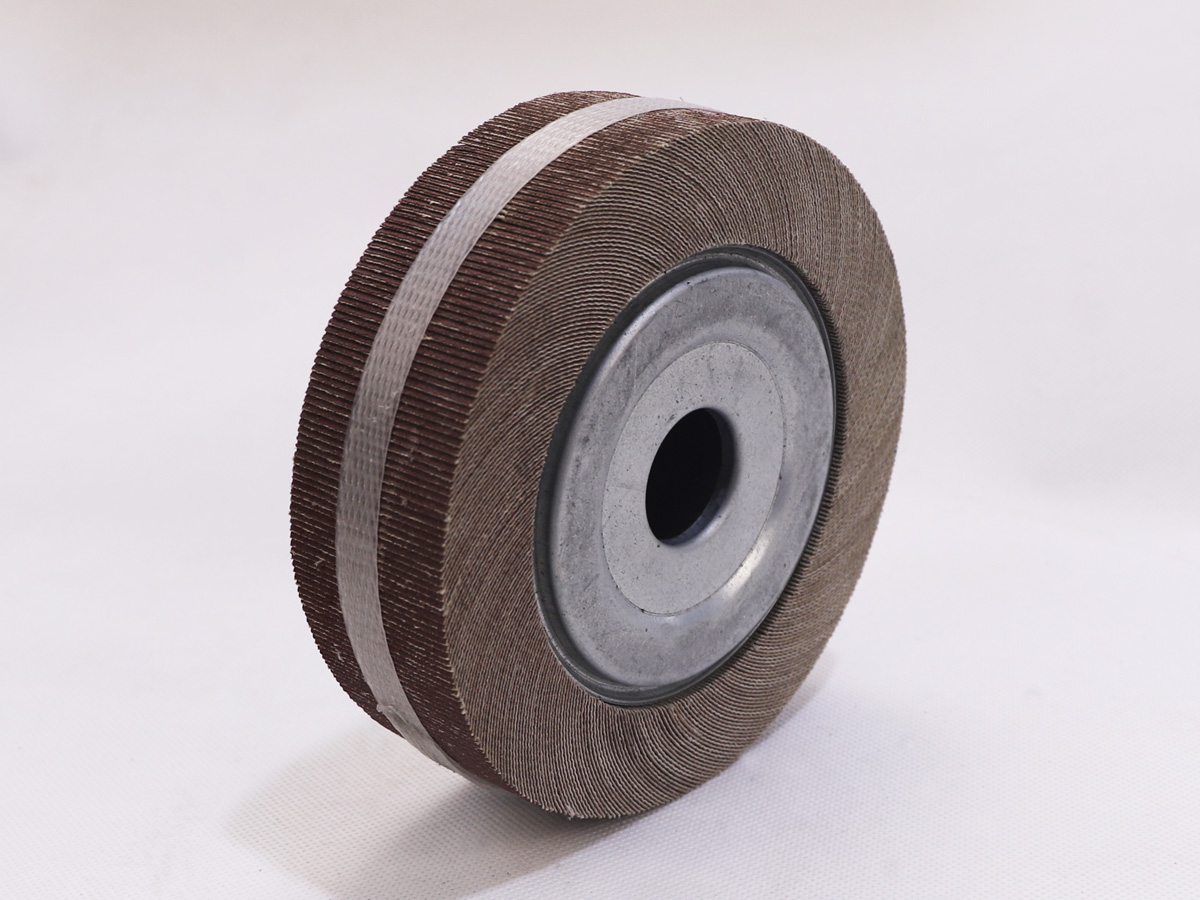

Special Shape Flap Wheel

◀ Product Category:Flap Wheels

◀ Code:JKX011
◀ ◀ Material:Aluminum Oxide Abrasive cloth◀Backing:Polyester/Polycotton/pure cotton◀Outside Diameter:100/150/ 200/ 250/ 300/ 350/400/ 450 mm◀Thickness: 10/ 12/ 15/ 20/ 25/ 30/ 40/ 45/ 50/ 60/ 65/ 75/ 80/ 95/ 100/ 120 mm◀Bore Size:16/ 25.4/32/ 36/38.1/ 127/ 181 m

Consulting Service Hotline:

  • Share:


* We're Welcome Your Request For Customization.

◀ Material:Aluminum Oxide Abrasive cloth

◀ Backing:Polyester/Polycotton/pure cotton

◀ Outside Diameter:100/150/ 200/ 250/ 300/ 350/400/ 450 mm

◀ Thickness: 10/ 12/ 15/ 20/ 25/ 30/ 40/ 45/ 50/ 60/ 65/ 75/ 80/ 95/ 100/ 120 mm

◀ Bore Size:16/ 25.4/32/ 36/38.1/ 127/ 181 mm

◀ Grits:24/40/ 60/ 80/ 100/ 120/150/180/ 240/ 320/ 400/ 600/ 800/ 1000/ 1200 mm


◀ High efficiency and long working life time, flexible grinding and polishing;

◀ Work smoothly and provide uniform surface treatment effect;

◀ Good heat dissipation, no damage to work-pieces for rusting removing, weld line trimming;

◀ Low noise, simple and rapid operation.


◀ Grinding and polishing for titanium alloy,heating-resisting alloy,stainless steel,finishing,  tube surface polishing

◀ Grinding,polishing,burnishing,drawing,shelling, derusting

◀ Applied to the surface of aluminum,ordinary metal, wood, plastic,stone

◀ Commonly used in automobile manufacture,heavy machinery,ship repair,aluminum alloy,hardware and decoration industries



Customization to meet your needs


◀ Special Shape Alumina Oxide Flap wheels are conformable to intricate shapes and contours, high working efficiency, stable grinding quality, no burning working-pieces, easily continuous operating.

◀ Design to deliver a consistent finish with a uniform rate of cut, flap wheels wear away,continually exposing fresh abrasive.

◀ Aluminum Oxide abrasive cloth substrate keep synchronous consumption. Good heat dissipation, do not burn work-piece.

◀ For a wide variety of blending, deburring and finishing applications common in the metal fabrication, welding and polishing wood industries.

◀ Good brightness after grinding, can be used as one-time grinding, no need last procedure of polishing


◀ The protective cover is the main protective device of the polishing machine, when the flap wheel is damaged in the work, can effectively cover the impeller, to ensure the safety of personnel.

◀ The balance of the flap wheel is mainly caused by the manufacture and installation of hundreds of flaps of inaccurate, so that the center of gravity and rotary shaft do not coincide.The harm caused by the imbalance is mainly shown in two aspects, on the one hand, in the high speed rotation of the vane wheel, cause vibration, easy to cause the workpiece surface polyangular vibration marks, on the other hand, the unbalanced acceleration of the spindle vibration and bearing wear, serious will cause the vane wheel page rupture, even cause accidents.

◀ The matching problem mainly refers to the installation problem of chuck and flaps. According to the standard requirements, the diameter of the chuck shall not be less than 1/3 of the diameter of the installed sand disc, and the corresponding provisions wear to the diameter larger than the chuck 10mm should be replaced with a new flap wheel.
